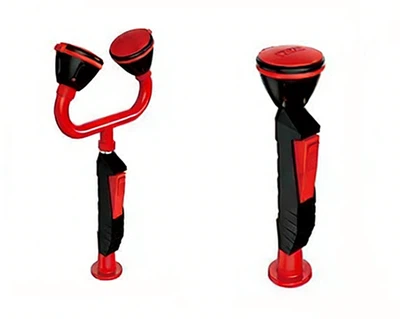

SAFETY EYEWASH STATIONS INTENDED USE
Key advantages include instant activation-no complex operation, just push the handle to release a soft, uniform water flow. The dual aerated eyewash heads mimic natural tears, minimizing eye irritation while covering the entire ocular area. Equipped with a constant-temperature control system (optional), it maintains water temperature at 15-38℃, avoiding discomfort from extreme temperatures. The station complies with ANSI Z358.1 standards, guaranteeing flushing flow rate ≥11.4L/min for at least 15 minutes.
|
|
|
SPECIFICATIONS OF SAFETY EYEWASH STATIONS
Safety eyewash stations are made of 304 stainless steel, polished and brushed surface.
| Eyewash elbow |
Stainless steel, resistant to corrosion from acids, alkalis, and other chemicals. Water jets from the eyewash nozzles are on the same plane, creating a cross-shaped spray pattern. Equipped with a filter. |
| Shower head cover |
170mm rubber cup to prevent secondary injury from impact during emergency use. |
| Dust cover |
PP material, normally dustproof, easily flushable during use, and reduces brief periods of high water pressure to prevent eye injury. |
| Eyewash basin |
Stainless steel, resistant to corrosion from acids, alkalis, and other chemicals. |
| Eyewash valve |
Ceramic quick-opening valve core, 304 stainless steel, 1/2 internal thread connection. |
| Base | 304 stainless steel or alloy material, resistant to corrosion from acids, alkalis, salts, oils, and other chemicals. Eyewash fittings thread conforms to international standards. |
| Green background with white symbol | Dimension and affixing comply with regulations. |
| Opening time | 1 second for the eyewash system. |
| Water flow |
Dual eyewash units >11.4 liters/minute, conforming to the US ANSI Z358-12014 eyewash standard. |
| Ideal temperature | 27°C-37°C. |
| Recommended pressure | 3 bar-5 bar. |
| Withstand pressure | 10 bar. |
| Inlet connection | G1 |
