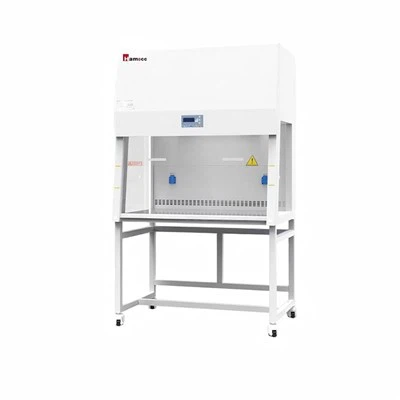

Biosafety Cabinet

Model Code

Nominal Width

External Dimensions (W x D x H)

Work Area Dimensions (W x D x H)

Inflow / Downflow Velocity

Exhaust Air Ratio

BSC-0900A2

3 ft (0.9 m)

1100 x 770 x 2150 mm

900 x 600 x 660 mm

0.51 m/s (100 fpm) / 0.33 m/s (65 fpm)

70% Recirculated / 30% HEPA Exhaust

BSC-1200A2

4 ft (1.2 m)

1400 x 770 x 2150 mm

1200 x 600 x 660 mm

0.51 m/s (100 fpm) / 0.33 m/s (65 fpm)

70% Recirculated / 30% HEPA Exhaust

BSC-1500A2

5 ft (1.5 m)

1700 x 770 x 2150 mm

1500 x 600 x 660 mm

0.51 m/s (100 fpm) / 0.33 m/s (65 fpm)

70% Recirculated / 30% HEPA Exhaust

BSC-1800A2

6 ft (1.8 m)

2000 x 770 x 2150 mm

1800 x 600 x 660 mm

0.51 m/s (100 fpm) / 0.33 m/s (65 fpm)

70% Recirculated / 30% HEPA Exhaust

Parameter

Specification

Why It Matters to Buyers

Cabinet Type

Class II Type A2

Provides personnel, product, and environmental protection for applicable microbiological and cell culture applications.

Inflow Velocity

0.51 m/s (100 fpm)

Creates the inward airflow barrier at the front opening to help prevent contaminated air from escaping toward the operator.

Downflow Velocity

0.33 m/s (65 fpm)

Provides controlled vertical airflow across the work zone to support product protection and stable cabinet operation.

Supply & Exhaust Filtration

Dual H14 HEPA Filters; ≥99.995% at MPPS / ≥99.99% at 0.3 μm

Dual filtration helps control airborne particles in both the supply and exhaust air paths.

Filter Leak Testing

EN 1822 / IEST-RP-CC001.4 compliant

Provides a defined basis for evaluating HEPA filter efficiency and integrity rather than relying only on a nominal filter grade.

Work Chamber Material

1.2 mm SUS304 Stainless Steel, non-porous and seamless

Stainless steel provides a smooth, corrosion-resistant work surface that is easier to clean and disinfect during routine laboratory use.

Outer Cabinet Shell

Heavy-gauge cold-rolled steel with antibacterial powder coating

Provides a rigid external structure while the powder-coated surface improves resistance to routine environmental wear.

Front Window Sash

6 mm toughened safety glass, motorized or manual option, with anti-UV protection

Toughened glass provides improved mechanical safety; motorized or manual operation allows the cabinet to be configured for different user requirements.

Lighting System

Energy-efficient LED; ≥1,000 lux

Provides sufficient illumination across the work area for handling samples, instruments, and containers with better visibility during extended procedures.

Operating Noise

≤62 dB(A) under standard operating conditions

Helps reduce operator fatigue and makes the cabinet more suitable for laboratories where personnel work beside the equipment for extended periods.

Control System

Microprocessor-controlled LCD display

Provides real-time operating information, including airflow velocity, filter lifespan, sash status, and working pressure.

Alarm Protection

Audible & visual alarms for Low Airflow, Sash Height Violation, Blower Fault, and Filter Lifetime Expiry

Gives operators an immediate indication when key operating conditions move outside the defined range or maintenance is required.

Electrical Supply

110V/60Hz, 220V/50Hz, or 230V/60Hz adaptable

Supports different electrical requirements for international distribution and reduces the need for separate cabinet platforms for different markets.

Base Stand

Fixed, manual height-adjustable, or motorized height-adjustable; heavy-duty lockable casters and leveling feet

Allows distributors to configure the cabinet for different laboratory layouts and operator-height requirements while providing stable positioning during use.

Standard Accessories Included

Waterproof internal sockets (2 pcs), UV lamp with interlock timer, gas tap, and vacuum tap
