Product Features
Metal Parts
Main material: ≥1.2mm galvanized steel sheet,Epoxy resin electrostatic spray coating,Durable, chemical-resistant, lead-free coating,High gloss and minimal corrosion and moisture impact.
Front and Side Panels

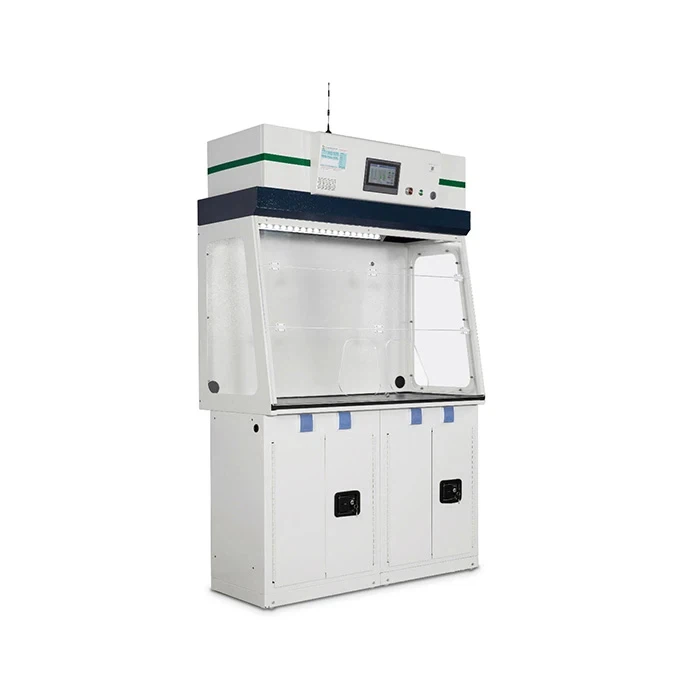

benchtop ductless fume hood Main material: ≥6mm acrylic sheet,Excellent weather resistance and chemical resistance,Aging-resistant, colorless, transparent, and visually comfortable.
Real-time Temperature and Humidity Monitoring System
Displays temperature and humidity,Alarm parameter settings to ensure safe use.
an Monitoring
Fan system failure alarm,Adjustable fan speed to meet different chemical handling requirements.
Epoxy Resin Countertop
Excellent chemical stability and corrosion resistance
High impact resistance, durable high-temperature performance, not prone to delamination, swelling, or cracking.
LED Lighting
Power equivalent to 25W fluorescent lamp
Generates no heat, safe, and does not affect lab temperature,Energy-saving, environmentally friendly, and long lifespan.
Filter Saturation Alarm System
Equipped with dual filters and dual volatile organic compound (VOC) sensors, one sensor monitors indoor air quality while the other monitors filter saturation. An alert is triggered when the saturation alarm value is exceeded. If the concentration remains above the set value for an extended period, the filter needs to be replaced.
High-Efficiency Filtering System
Arranges particles according to particle size, compliant with ASTM standards, highly effective against acidic and organic gases, with strong adsorption capacity.
Adopts a high-efficiency HEPA filter, achieving 99.995% filtration efficiency for particles larger than 0.3μm.
PSC Fan from the USA
24V voltage,Stable performance, ultra-quiet, no sparks or static electricity.
Software Control Section
- A 7-inch high-resolution display (1024x600) with an intuitive IoT smart interface for clear, user-friendly control.
- Integrated 4G communication via a certified module and SIM card enables stable remote connectivity and data exchange.
- An onboard chemical management system supports a cloud-synced list of 100+ chemicals, allowing full editing (add/delete/modify) directly on the device.
- Remote management via a mobile app (e.g., WeChat) provides access to chemical lists, historical VOC/temperature/humidity graphs, alarm logs, and control over fan, lights, and alarms.
- Open API interfaces allow for seamless integration with third-party platforms and custom software solutions.
- The entire software control system is verified and certified by the China Software Testing Center.
Advantages
1. No Duct Installation Required
Easy installation, no exhaust emissions, environmentally friendly
2. Optional Top Filter Module System
Meets various experimental needs
3. Advanced Modular Filtering Technology
Fully adsorbs and filters harmful gases and particulate dust
4. Energy Efficient
No air conditioning energy consumption, highly energy saving
5. Flexible Placement
benchtop ductless fume hood Can be placed on a desktop or equipped with mobile wheels
Suitable for any complex experimental location
TECHNICAL DATA
|
Model |
HM-DS800 |
HM-DS1000 |
HM-DM1275 |
HM-DM1600 |
HM-DL1600 |
|
(Outer size) |
800*620*1245mm |
1000*620*1245mm |
1275*620*1245mm |
1600*620*1245mm |
1600*620*1245mm |
|
(Inner size) |
781*574*934 |
981*574*934 |
1256*574*934 |
1581*574*934 |
1581*574*934 |
|
Air handling capacity |
230m³/h |
230m³/h |
690m³/h |
690m³/h |
690m³/h |
|
Voltage |
110-240V |
110-240V |
110-240V |
110-240V |
110-240V |
|
Frequency |
50-60Hz |
50-60Hz |
50-60Hz |
50-60Hz |
50-60Hz |
|
Power |
42W |
42W |
42W |
42W |
42W |
|
Maximum current |
2A |
2A |
2A |
2A |
2A |
|
Volume |
40-52dBA |
40-52dBA |
40-52dBA |
40-52dBA |
40-52dBA |
|
Control System |
1set |
1set |
1set |
1set |
1set |
|
VOC Alarm System |
2set |
2set |
2set |
2set |
2set |
|
Temperature& humidity |
1set |
1set |
1set |
1set |
1set |
|
Remote monitoring system |
1set |
1set |
1set |
1set |
1set |
|
Under cabinet details |
800*550*825 |
1000*550*825 |
635*550*825(2unit) |
800*550*825(2unit) |
800*720*825(2unit) |
|
Option |
|
|
Optional filters |
Optional alarms |
|
OG,AG,AM,FO,HEPA |
HCL,Formaldehyde alarm |
TECHNICAL PARAMETERS
The ABJ series visual inspection machine is mainly used for automatic detection of visible impurities and sealing defects for small volume injections (vials, ampoules, oral liquid containers and so on) in the pharmaceutical enterprises. With advanced and compact design, the machine adopts high resolution industrial cameras to ensure full detection of the liquids, so that the visible impurities that may exist in transparent or semi- transparent liquids can be recognized and detected fast and accurately. Impurities include glass fragments, metals, fibers, white spots, white blocks, black spots, plastic fragments and so on). The machine can also accurately identify if the filling volume is within the permissible range. In addition, the inspection machine can carry out inspection for vial sealing and ampoule tip quality. The non-conforming products can be then directly separated from the dial wheel without entering the detection wheel disc, so that the inspection speed and precision can be greatly enhanced to meet the production requirement of customers.
